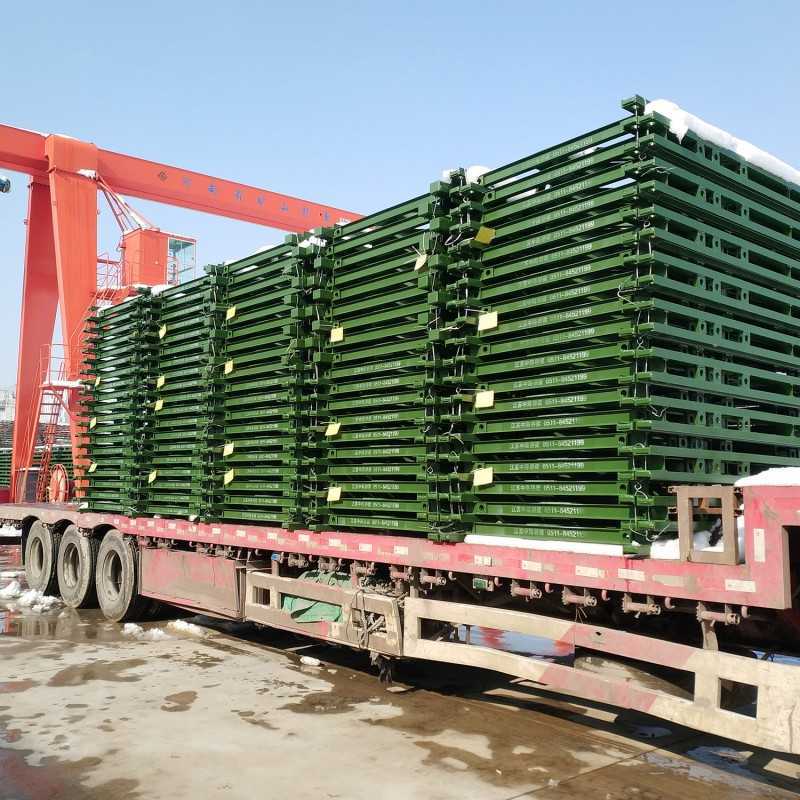

Steel Structure Bridge/prefebricated Steel Bridge
Bailey Bridges are designed to adapt to different climate conditions while performing well in terms of environmental impact. Here are the adaptability of Bailey Bridges in different climates and their environmental advantages:
Climate adaptability
1. **Extreme temperature**: The steel structure of Bailey Bridges is able to withstand extreme temperature changes. Although temperature fluctuations may cause thermal expansion and contraction of materials, this effect can be effectively mitigated by using temperature compensating materials and designing expansion joints.
2. **Wet environment**: Bailey Bridges are usually galvanized or other anti-corrosion coatings to prevent corrosion in wet environments. Good drainage system design can reduce water accumulation and further reduce the impact of moisture on bridge structures.
3. **Ice and snow weather**: In ice and snow weather, Bailey Bridges can ensure safety by regularly clearing snow and using anti-skid measures. Some bridges will also install heating systems or use antifreeze to reduce the pressure of ice and snow on the structure.
4. **Wind and sand**: In areas with heavy wind and sand, Bailey Bridges can be equipped with protective covers or cleaned regularly to reduce the wear and tear of wind and sand on the structure.
Environmental Advantages
1. **Minimized land disturbance**: The modular design of Bailey bridges allows for rapid construction without large-scale land development, reducing disturbance to the surrounding ecosystem.
2. **Sustainable materials**: Bailey bridges are primarily made of high-strength steel, which is not only durable but also recyclable. In addition, there is the option of using local materials, reducing carbon emissions during transportation.
3. **Quick deployment and dismantling**: Bailey bridges’ ability to be assembled and dismantled quickly makes them ideal for temporary or emergency situations, reducing long-term environmental impact.
4. **Strong adaptability**: Bailey bridges can be adjusted to different terrain and climate conditions, such as raising the bridge deck height in flood-prone areas to suit different environmental needs.
In summary, Bailey bridges are not only adaptable to various climate conditions, but also perform well in terms of environmental impact. Its rapid deployment, minimal land disturbance, and use of sustainable materials make it an environmentally friendly and efficient bridge solution.
Specifications:
| CB321(100) Truss Press Limited Table |
| No. | Lnternal Force | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR |
| 321(100) | Standard Truss Moment(kN.m) | 788.2 | 1576.4 | 2246.4 | 3265.4 | 1687.5 | 3375 | 4809.4 | 6750 |
| 321(100) | Standard Truss Shear (kN) | 245.2 | 490.5 | 698.9 | 490.5 | 245.2 | 490.5 | 698.9 | 490.5 |
| 321 (100) Table of geometric characteristics of truss bridge(Half bridge) |
| Type No. | Geometric Characteristics | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | DDR | SSR | DSR | TSR | DDR |
| 321(100) | Section properties(cm3) | 3578.5 | 7157.1 | 10735.6 | 14817.9 | 7699.1 | 15398.3 | 23097.4 | 30641.7 |
| 321(100) | Moment of inertia(cm4) | 250497.2 | 500994.4 | 751491.6 | 2148588.8 | 577434.4 | 1154868.8 | 1732303.2 | 4596255.2 |
| CB200 Truss Press Limited Table |
| NO. | Internal Force | Structure Form |
| Not Reinforced Model | Reinforced Model |
| SS | DS | TS | QS | SSR | DSR | TSR | QSR |
| 200 | Standard Truss Moment(kN.m) | 1034.3 | 2027.2 | 2978.8 | 3930.3 | 2165.4 | 4244.2 | 6236.4 | 8228.6 |
| 200 | Standard Truss Shear (kN) | 222.1 | 435.3 | 639.6 | 843.9 | 222.1 | 435.3 | 639.6 | 843.9 |
| 201 | High Bending Truss Moment(kN.m) | 1593.2 | 3122.8 | 4585.5 | 6054.3 | 3335.8 | 6538.2 | 9607.1 | 12676.1 |
| 202 | High Bending Truss Shear(kN) | 348 | 696 | 1044 | 1392 | 348 | 696 | 1044 | 1392 |
| 203 | Shear Force of Super High Shear Truss(kN) | 509.8 | 999.2 | 1468.2 | 1937.2 | 509.8 | 999.2 | 1468.2 | 1937.2 |
| CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge) |
| Structure | Geometric Characteristics |
| Geometric Characteristics | Chord Area(cm2) | Section Properties(cm3) | Moment of Inertia(cm4) |
| ss | SS | 25.48 | 5437 | 580174 |
| SSR | 50.96 | 10875 | 1160348 |
| DS | DS | 50.96 | 10875 | 1160348 |
| DSR1 | 76.44 | 16312 | 1740522 |
| DSR2 | 101.92 | 21750 | 2320696 |
| TS | TS | 76.44 | 16312 | 1740522 |
| TSR2 | 127.4 | 27185 | 2900870 |
| TSR3 | 152.88 | 32625 | 3481044 |
| QS | QS | 101.92 | 21750 | 2320696 |
| QSR3 | 178.36 | 38059 | 4061218 |
| QSR4 | 203.84 | 43500 | 4641392 |
Advantage
Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
