GB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian Bridge

Name: GB Q345B Temporary Steel Bridge Emergency Metal Pedestrian Bridge
Brand: Zhonghai Bailey Bridge
Price: 95 USD

Brand Name : Zhonghai Bailey Bridge

Model Number : CB200/CB321

Certification : IS09001, CE

Place of Origin : China

MOQ : 1 Pcs

Price : USD 95-450

Payment Terms : L/C,D/P,T/T

Supply Ability : 60000ton/year

Delivery Time : 8-10 work days

Packaging Details : Naked

Product Capability : 60000 Pieces Per Year

Grade : Q355B

Main Steel : GB Q345B

Bolts Grade : 8.8

Surface : Galvanized

Surface Protection : hot-dip galvanized

Secondary Steel : GB Q235

Usage : Temporary or Permanent Bridge

Application : Emergency Bridges

Standard : ASTM,GB,BS,BV

Contact Now

Temporary Steel Bridge For Sale/steel Bridge For Sale

Jiangsu Zhonghai Bridge Equipment Co., Ltd. stands out as a leading provider of high-quality bridge equipment, offering several key advantages. Our company is renowned for its commitment to technological innovation, having achieved breakthroughs such as fully automatic welding, which enhances production efficiency and ensures consistent product quality. We prioritize quality control, with our products undergoing rigorous testing by international institutions like SGS and TÜV to meet American and European standards. Our extensive R&D efforts have resulted in numerous patents, further solidifying our position as an industry innovator. Additionally, we provide comprehensive after-sales service, including technical support and maintenance guidance, ensuring customer satisfaction. With a strong focus on both quality and innovation, Jiangsu Zhonghai Bridge Equipment Co., Ltd. is well-positioned to meet the diverse needs of our global clients.

Specifications:

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
Structure	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
ss	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity

Product Tags:

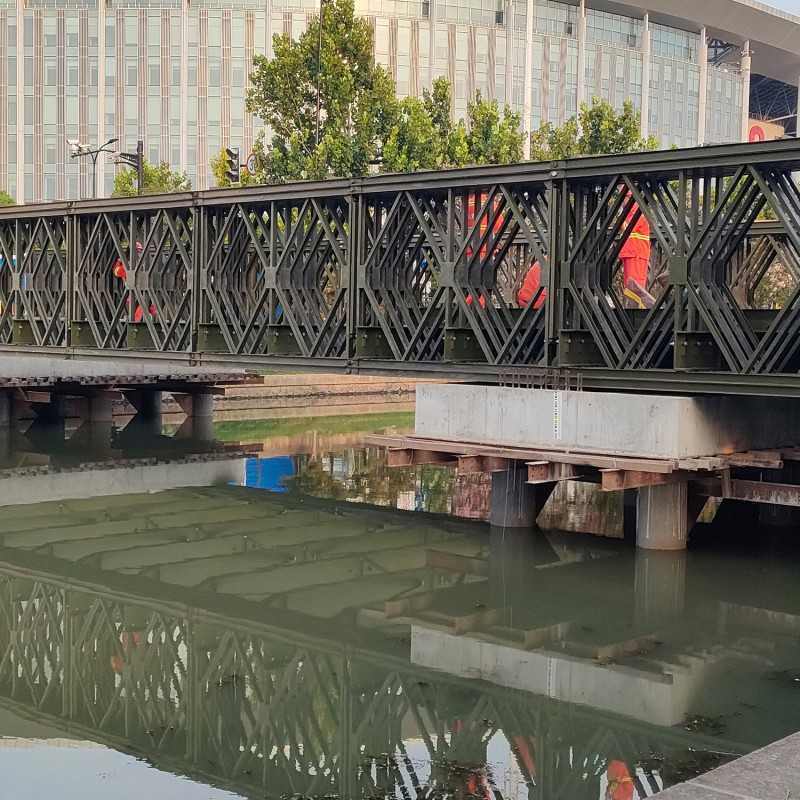

GB Q345B Temporary Steel Bridge / Emergency Metal Pedestrian Bridge Images
