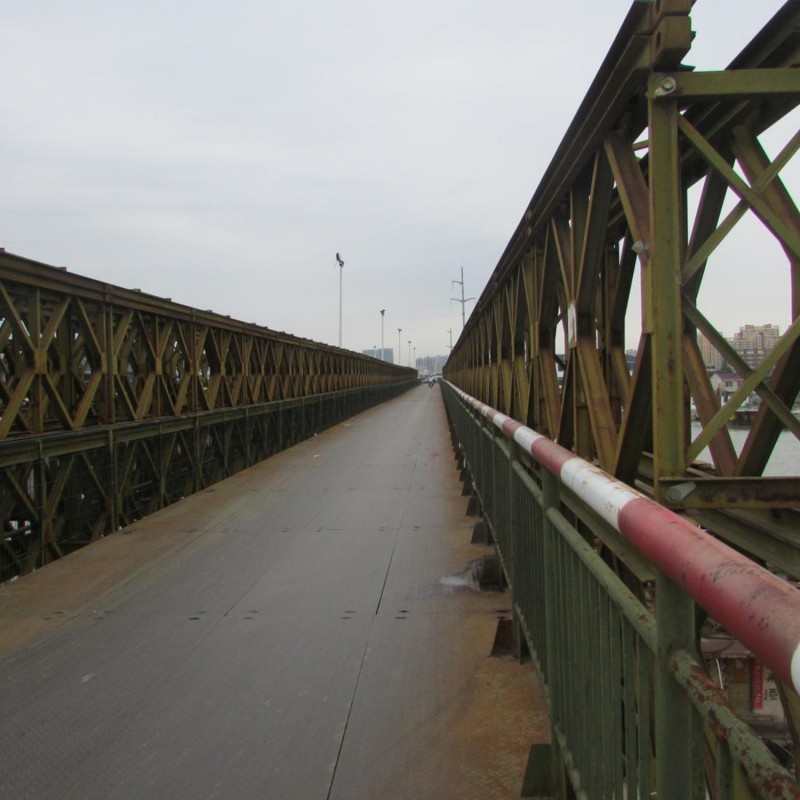

Modular Small Steel Truss Bridge Hot Dip Galvanized Steel Bridge

Name: Modular Small Steel Truss Bridge Hot Dip Galvanized Steel Bridge
Brand: Zhonghai Bailey Bridge
Price: 95 USD

Brand Name : Zhonghai Bailey Bridge

Model Number : CB200/CB321

Certification : IS09001, CE

Place of Origin : China

MOQ : 1 Pcs

Price : USD 95-450

Payment Terms : L/C,D/P,T/T

Supply Ability : 60000ton/year

Delivery Time : 8-10 work days

Packaging Details : Naked

Grade : Q355B

Corrosion Resistance : High

Reliability : High Structural Reliability

Material : Steel

Usage : Bridge

Stiffness : Modular Bridge Construction

Related : Callender-Hamilton bridge

Product Capability : 60000 Pieces Per Year

Standard : ASTM,GB,BS,BV

Contact Now

Small Steel Bridges Manufacture/hot-dip Galvanized Steel Bridge

At Jiangsu Zhonghai Bridge Equipment Co., Ltd., we prioritize the highest quality standards for our exported steel products. All our steel materials undergo rigorous testing by internationally recognized institutions such as SGS and TÜV. These tests ensure full compliance with American and European standards, providing our customers with confidence in the reliability and safety of our products. Additionally, our main welds have undergone ultrasonic testing to meet welding standards, further enhancing the quality and durability of our bridge equipment.

Specifications:

CB321(100) Truss Press Limited Table
No.	Lnternal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Standard Truss Moment(kN.m)	788.2	1576.4	2246.4	3265.4	1687.5	3375	4809.4	6750
321(100)	Standard Truss Shear (kN)	245.2	490.5	698.9	490.5	245.2	490.5	698.9	490.5
321 (100) Table of geometric characteristics of truss bridge(Half bridge)
Type No.	Geometric Characteristics	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	DDR	SSR	DSR	TSR	DDR
321(100)	Section properties(cm3)	3578.5	7157.1	10735.6	14817.9	7699.1	15398.3	23097.4	30641.7
321(100)	Moment of inertia(cm4)	250497.2	500994.4	751491.6	2148588.8	577434.4	1154868.8	1732303.2	4596255.2

CB200 Truss Press Limited Table
NO.	Internal Force	Structure Form
		Not Reinforced Model				Reinforced Model
		SS	DS	TS	QS	SSR	DSR	TSR	QSR
200	Standard Truss Moment(kN.m)	1034.3	2027.2	2978.8	3930.3	2165.4	4244.2	6236.4	8228.6
200	Standard Truss Shear (kN)	222.1	435.3	639.6	843.9	222.1	435.3	639.6	843.9
201	High Bending Truss Moment(kN.m)	1593.2	3122.8	4585.5	6054.3	3335.8	6538.2	9607.1	12676.1
202	High Bending Truss Shear(kN)	348	696	1044	1392	348	696	1044	1392
203	Shear Force of Super High Shear Truss(kN)	509.8	999.2	1468.2	1937.2	509.8	999.2	1468.2	1937.2

CB200 Table of Geometric Characteristics of Truss Bridge(Half Bridge)
Structure	Geometric Characteristics
Structure	Geometric Characteristics	Chord Area(cm2)	Section Properties(cm3)	Moment of Inertia(cm4)
ss	SS	25.48	5437	580174
ss	SSR	50.96	10875	1160348
DS	DS	50.96	10875	1160348
	DSR1	76.44	16312	1740522
	DSR2	101.92	21750	2320696
TS	TS	76.44	16312	1740522
	TSR2	127.4	27185	2900870
	TSR3	152.88	32625	3481044
QS	QS	101.92	21750	2320696
	QSR3	178.36	38059	4061218
	QSR4	203.84	43500	4641392

Advantage

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity
